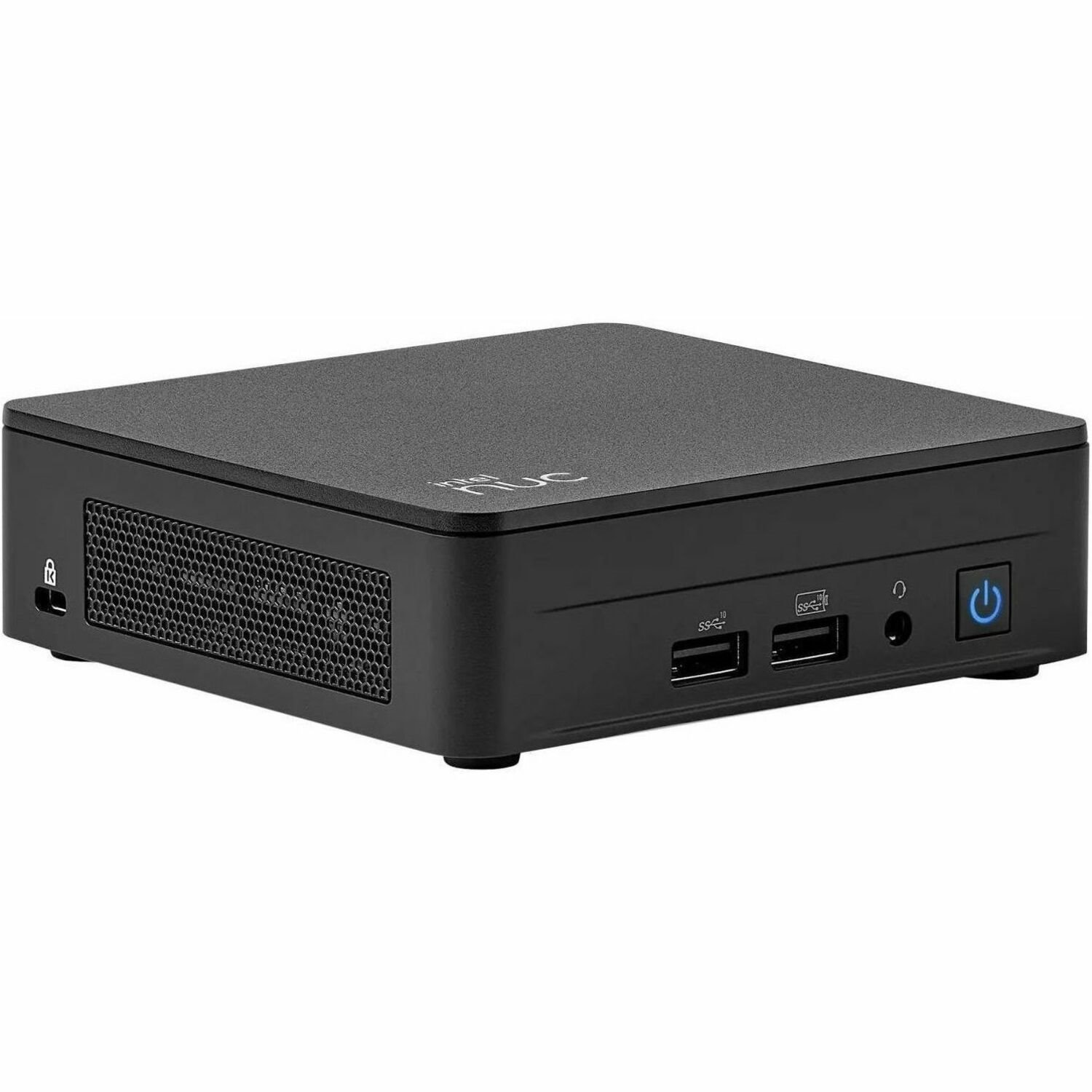

NUC 13 Pro: The Right Size for Modern Business
- Get the latest in business performance with 13th Gen Intel® Core™ processors featuring up to 14 cores (6P+8E) and up to 64GB dual-channel memory
- For professional-grade performance, the 13th Gen Intel Core™i7-1370P processor features 14 cores (6P+8E), 20 threads, 24MB Intel® Smart Cache, and 35W TDP
- Businesses get the fast memory they need with up to 64GB dual-channel DDR4-3200 SODIMMs
- Wired and wireless connections are lightning fast with up to a 2.5 Gbps Intel® Ethernet port and Intel® Wi-Fi 6E (Gig+)
- Dual HDMI 2.1 and Thunderbolt™4 ports give businesses flexibility to connect up to 4K extended displays
Business Driver. Space Saver.
NUC 13 Pro Mini PCs, Kits, and Boards offer the combination of size, performance, and reliability you need to drive modern business.
It all starts with 13th Gen Intel Core processors that deliver outsized performance in a 4x4 form factor, with up to 14 processor cores (6P+8E) and up to 64GB dual-channel DDR4 memory. Select SKUs also come with Intel vPro®Enterprise, which provides comprehensive security, enterprise-grade stability, and hardware-based remote management.
The NUC Pro Software Suite (NPSS) helps to ensure digital signage applications keep running during any unexpected system failures. Businesses also benefit from advanced features including power control, hardware alarm clock, hardware KVM, boot redirection, beyond firewall support, cloud-based manageability, remote PC remedy, and unattended system control.
To provide an eco-friendly foundation for businesses, NUC 13 Pro Mini PCs and Kits are upgradable, reparable, and reusable. Every system is qualified for 24x7 operation.
- General Information
- Manufacturer
- ASUS Computer International
- Manufacturer Website Address
- http://uk.asus.com
- Brand Name
- Asus
- Product Line
- NUC 13 Pro
- Product Type
- Barebone System
- Processor
- Number of Processors Supported
- 1
- Number of Processors Installed
- 1
- Processor Socket
- Socket BGA-1744
- Processor Type
- Core i3
- Processor Generation
- 13th Gen
- Processor Model
- i3-1315UE
- Processor Core
- Hexa-core (6 Core)
- Processor Speed
- 1.20 GHz
- Maximum Turbo Speed
- 4.50 GHz
- 64-bit Processing
- Yes
- Chipset
- Chipset Manufacturer
- Intel
- Memory
- Maximum Memory Supported
- 64 GB
- Memory Technology
- DDR4 SDRAM
- Memory Standard
- DDR4-3200/PC4-25600
- Total Number of Memory Slots
- 2
- Intel Optane Memory Ready
- No
- Storage
- Supported Storage Drive Interfaces
- PCI Express
- Supported Storage Drive Types
- SSD
- Controllers
- Controller Type
- NVMe
- Serial ATA
- Display & Graphics
- Graphics Controller Model
- UHD Graphics
- Graphics Memory Technology
- DDR4 SDRAM
- Graphics Memory Accessibility
- Shared
- Network & Communication
- Ethernet Technology
- 2.5 Gigabit Ethernet
- Wireless LAN
- Yes
- Wireless LAN Standard
- IEEE 802.11ax
- Bluetooth
- Yes
- Bluetooth Standard
- Bluetooth 5.3
- I/O Expansions
- Number of M.2 Interfaces
- 2
- Interfaces/Ports
- HDMI
- Yes
- Total Number of USB Ports
- 7
- Number of USB 3.2 Ports
- 3
- Number of Onboard USB 2.0 Ports
- 3
- Network (RJ-45)
- Yes
- DisplayPort
- Yes
- Number of Thunderbolt 4 Ports
- 2
- Operating System
- Operating System Supported
- Windows 10 IoT Enterprise
- Red Hat Linux
- Ubuntu Linux
- Physical Characteristics
- Height
- 37 mm
- Width
- 112 mm
- Depth
- 117 mm
- Miscellaneous
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
