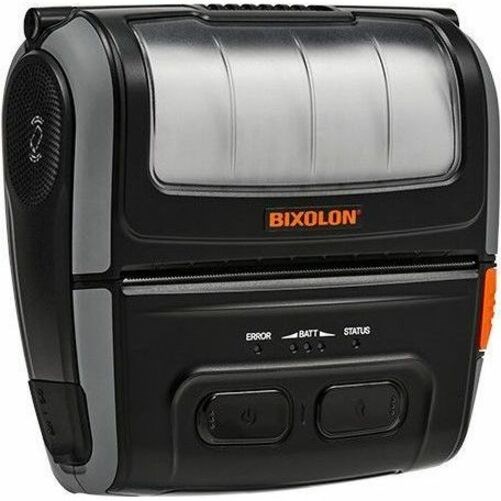

Bixolon SPP-R410 Mobile POS, Retail, Delivery, Customer Service Center, Ticketing, Field Service Direct Thermal Printer - Monochrome - Label/Receipt Print - USB - USB Host - Serial - Bluetooth - Near Field Communication (NFC) - Battery Included
- Part: 1022964
- Model: SPP-R410IAK5/BEG
- General Information
- Manufacturer
- Bixolon America, Inc
- Manufacturer Website Address
- http://www.bixolon.com
- Brand Name
- Bixolon
- Product Type
- Direct Thermal Printer
Easy, Seamless Connectivity
- Compatible with all major operating systems including Android™, iOS® and Windows®
- Dual-band WLAN (5GHz and 2.4 GHz)
- Dual-mode Bluetooth V4.1 Classic (MFi AP2 certified) and LE
- Easy Bluetooth pairing via NFC
- Smart Wi-Fi setting via mobile devices
- SoftAP enables direct connection to mobile devices
Enhanced Optimization for Field Service
- Compact, ergonomic and light-weight (530g)
- 1.8 m / 6 ft. drop rate
- IP54 (Printer only) water and dust proof
- 56-hour stand by time once fully charged (Bluetooth model in power save mode)
- Supports continuous printing
- 6 rolls of 57 mm diameter paper (Total 162 m) once fully charged
- Supports a wide range of carrying and charging accessories
Multi-Purpose Design
- Fast printing speed up to 90 mm/sec (Receipt)
- Supports black mark reflective sensor and transmissive gap sensor (Optional Positioning)
- Easily switch from receipt to label printing using feed button or VMSM software (No hardware change needed)
- Supports linerless label printing (optional)
- Technical Information
- Recommended Use
- Label/Receipt Print
- Print Color Capability
- Monochrome
- Maximum Mono Print Speed
- 90 mm/s
- Maximum Print Resolution (dpi)
- 203
- Maximum Print Width
- 104 mm (4.09")
- Barcode Symbology Supported
- QR Code
- PDF417
- Maxi Code
- GS1 DataBar
- Data Matrix
- Aztec Code
- EAN-8
- EAN-13
- ITF
- UPC-A
- UPC-E
- Code 128
- Code 39
- Code 93
- Codabar
- Application/Usage
- Mobile POS
- Retail
- Delivery
- Customer Service Center
- Ticketing
- Field Service
- Features
- Compact
- Rugged
- Water Proof
- Dust Proof
- Mobile Device Printing
- Yes
- Ingress Protection (IP) Rating
- IP54
- Character Sets
- 95 Alphanumeric
- 32 International
- 128 x 33 Graphic
- Connectivity Technology
- Wired
- Fonts Included
- JPN: 24 x 24
- Font A: 12 x 24
- Font B: 9 x 17
- Font C: 9 x 24
- KOR
- CHN
- Print Technology
- Direct Thermal
- Memory
- Standard Memory
- 64 MB
- Flash Memory
- 32 MB
- Interfaces/Ports
- Serial Port
- Yes
- USB Host
- Yes
- USB
- Yes
- Network & Communication
- Bluetooth
- Yes
- Near Field Communication (NFC)
- Yes
- Display & Graphics
- Display Screen
- Yes
- Screen Size
- 10.2 cm (4")
- Display Screen Type
- LCD
- Media Types & Handling
- Media Type
- Label
- Receipt
- Media Sensor
- Paper End Sensor
- Cover Open Sensor
- Media Thickness
- 70 µm
- Maximum Roll Diameter
- 57 mm
- Fonts & Emulation
- Language Emulation
- BXL/POS
- Power Description
- Power Source
- Battery
- Battery Information
- Battery Chemistry
- Lithium Ion (Li-Ion)
- Battery Included
- Yes
- Battery Capacity
- 2600 mAh
- Environmental Conditions
- Operating Temperature
- -15°C - 50°C
- Operating Relative Humidity
- 10% - 80%
- Storage Temperature
- -5.6°C - 70°C
- Physical Characteristics
- Height
- 138 mm
- Width
- 143 mm
- Depth
- 66 mm
- Weight (Approximate)
- 530 g
- Miscellaneous
- Package Contents
- SPP-R410 4 inch Mobile Printer
- Belt Clip
- Battery Pack
- Battery Charger
- Power Cord
- Paper
- Platform Supported
- PC
- SPARC
- Android
