- General Information
- Manufacturer
- CyberPower Systems, Inc
- Manufacturer Website Address
- https://www.cyberpowersystems.com/
- Brand Name
- CyberPower
- Product Line
- Smart App
- Product Type
- Dual Conversion Online UPS

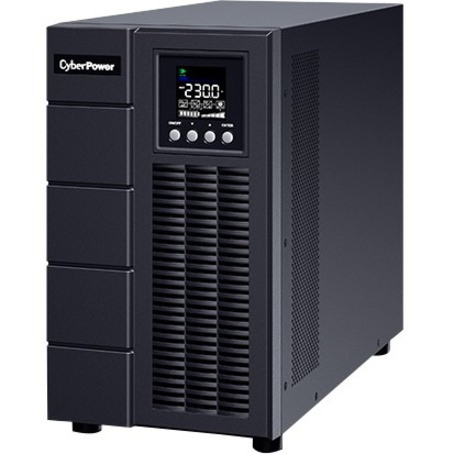

CyberPower OLS3000EA is a high-performance UPS featuring online double-conversion topology, which provides seamless Pure Sine Wave power for mission-critical devices such as NAS and servers, DVRs/surveillance systems, transportation and infrastructure, and emergency systems. It's typically integrated in the back office, server room, and data center environment. The UPS is designed with color LCD panel for users to monitor power system and configure settings easily. This model is generator compatible and also adopts ECO mode to conserve power. The product can be connected to Emergency Power Off (EPO) switch, which allows users to shut off UPS immediately during emergency. The variable speed fans provide automatic thermal management based on power load to reduce noise and provide greater comfort for users.
- Warranty
- Limited Warranty
- 2 Year
- Additional Warranty Information
- Battery Warranty Period (Year): 2
- Connected Equipment Guarantee: 25000 Euro ; 2 Years
- Technical Information
- Plug/Connector Type
- IEC 60320 C20
- Schuko
- Receptacle Type
- IEC 60320 C19
- Terminal Block
- IEC 60320 C13
- Receptacle Detail
- 1 x IEC 60320 C19
- 1 x Terminal Block
- 6 x IEC 60320 C13
- Number of Battery & Surge Outlets
- 7
- Overload Protection
- Yes
- Transfer Time
- 0 ns
- EMI/RFI Noise Filter
- Yes
- Phase
- Single Phase
- Energy Saving
- Online ECO Mode Efficiency > 95%
- Application/Usage
- Server
- DVR
- Surveillance System
- Transportation
- Infrastructure
- Emergency System
- Server Room
- Data Center
- Power Description
- Load Capacity (VA)
- 3 kVA
- Load Capacity (Watt)
- 2.70 kW
- Input Voltage
- 120 V AC
- 230 V AC
- Input Voltage Range
- 110 V AC - 300 V AC
- 140 V AC - 300 V AC
- 160 V AC - 300 V AC
- 190 V AC - 300 V AC
- Output Voltage
- 208 V AC
- 220 V AC
- 230 V AC
- 240 V AC
- Input Frequency
- 60 Hz
- Output Frequency
- 60 Hz
- Waveform Type
- Pure Sine Wave
- Surge Energy Rating
- 370 J
- Management
- Network Management
- SNMP/HTTP Remote Monitoring
- Alarm
- Battery Mode
- Low Battery
- Overload
- Overheat
- UPS Fault
- Replace Battery
- Over-charge
- Interfaces/Ports
- Serial Port
- Yes
- Network (RJ-45)
- No
- EPO Port
- Yes
- USB (HID Compliant) Port
- Yes
- Battery Information
- Battery Characteristics
- Sealed
- Battery Chemistry
- Lead Acid
- Backup/Run Time (Full Load)
- 4.30 Minute
- Backup/Run Time (Half Load)
- 13.80 Minute
- Typical Battery Recharge Time
- 4 Hour
- Replaceable Battery
- No
- Environmental Conditions
- Maximum Operating Temperature
- 40°C
- Storage Temperature
- -20°C - 50°C
- Maximum Operating Elevation
- 1.50 km
- Maximum Storage Elevation
- 1.50 km
- Operating Humidity
- 20% - 90%
- Storage Relative Humidity
- 10% - 90%
- Thermal Dissipation
- 1023 BTU/h
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Height
- 337 mm
- Width
- 196 mm
- Depth
- 416 mm
- Form Factor
- Tower
- Weight (Approximate)
- 26 kg
- Miscellaneous
- Package Contents
- Smart App OLS3000EA 3000VA Tower UPS
- Power Cord
- USB Cable
- User's Manual
- Environmentally Friendly
- Yes
