Connects high-output devices with C19/C20 power connectors, including routers and blade servers.
Features Power | Cord Connects High-Output Data Center Equipment to Reliable AC Power

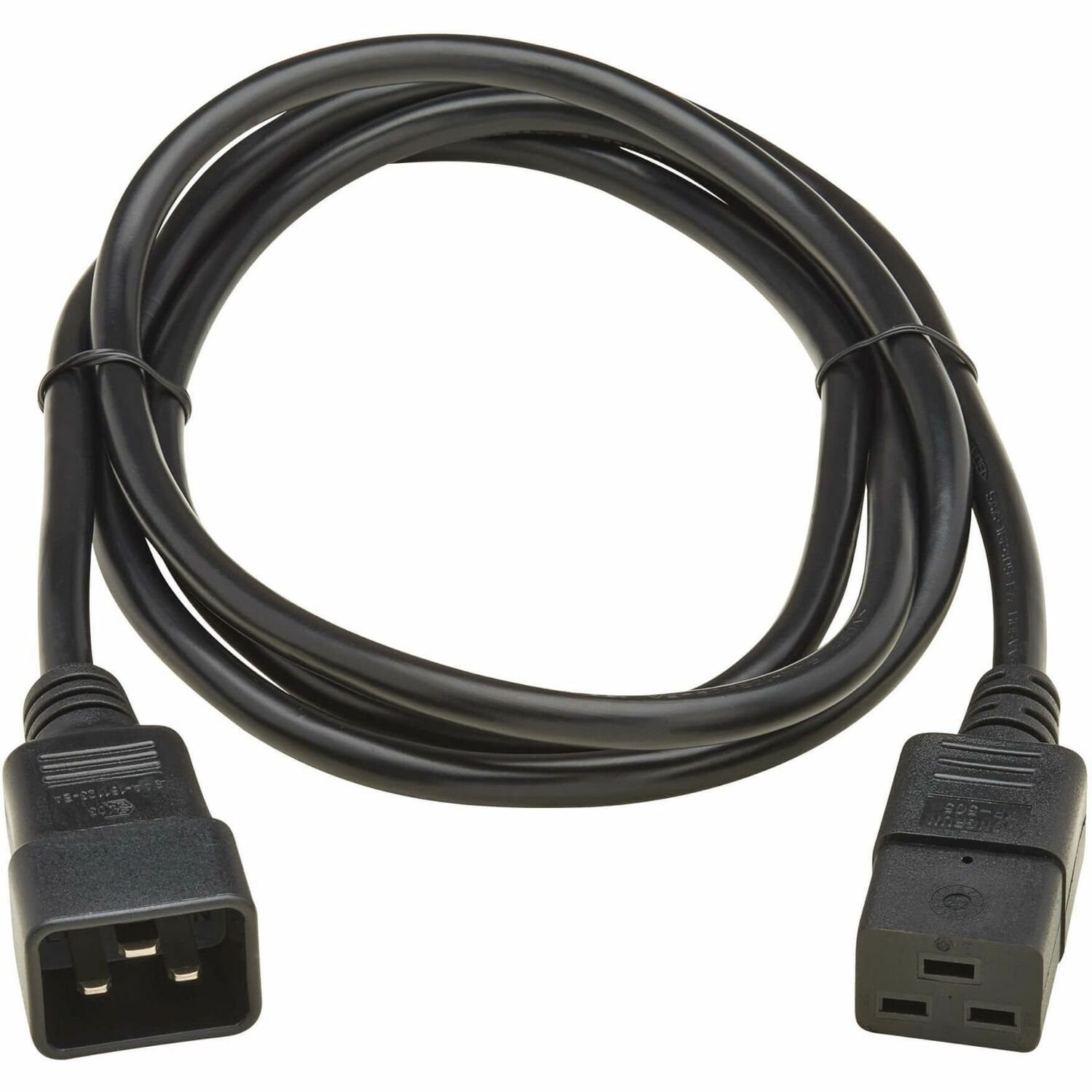

This VDE-compliant power cable connects a router, blade server or other high-output network device with a C20 power inlet to a PDU, UPS system or surge protector with C19 outlets. It can also extend an existing power connection up to two meters (6.6 feet). The P036-02M-EU features an IEC-320-C20 end for connecting to an AC power source or cord and an IEC-320-C19 end for connecting to a blade server chassis or other high-output device.
H05VV-F Jacket Is Fully VDE-Compatible for European Applications
The 0.75mm2 enhanced PVC jacket complies with VDE, CE and UKCA standards for data centers, racks, workstations and other IT applications in Europe.
- General Information
- Manufacturer
- Eaton Corporation
- Manufacturer Website Address
- http://www.powerquality.eaton.com/UK/
- Brand Name
- Tripp Lite series
- Product Type
- Power Extension Cord
- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- First End Connector Type
- IEC 60320 C20
- First End Connector Detail
- 1 x 3-pin IEC 60320 C20 Male
- Second End Connector Type
- IEC 60320 C19
- Second End Connector Detail
- 1 x 3-pin IEC 60320 C19 Female
- Device Supported
- Network Switch
- PDU
- Router
- Server
- UPS
- Blade Server
- Network Device
- Surge Protector
- Chassis
- Localization
- Europe
- Gauge
- 16
- Number of Conductors
- 3
- Power Description
- Voltage Rating
- 250 V
- Current Rating
- 16 A
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Jacket Material
- Polyvinyl Chloride (PVC)
- Height
- 254 mm
- Width
- 202.9 mm
- Depth
- 12.7 mm
- Cord Length
- 2 m
- Weight (Approximate)
- 176.9 g
- Environmental Conditions
- Minimum Operating Temperature
- -15°C
- Maximum Operating Temperature
- 70°C
- Minimum Storage Temperature
- -15°C
- Maximum Storage Temperature
- 60°C
- Miscellaneous
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
