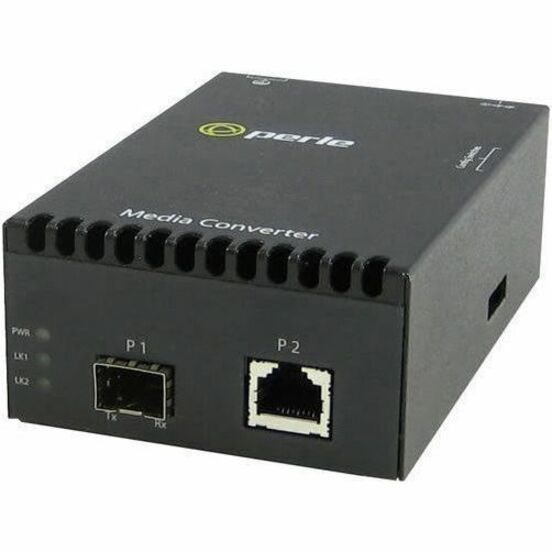

The Perle S-10GRT-SFP Media Converter transparently connects 10/100/1000/2.5G/10GBase-T Ethernet links over multimode or single mode fiber. Each Media Converter comes with one RJ45 Ethernet 10GBase-T port and an empty slot for one SFP or SFP+ module.
The S-10GRT-SFP Media Converter supports key features for ultimate network flexibility and growth.
- 10/100/1000/2.5G/10G rate conversion can be enabled to automatically detect Ethernet port speed and do a rate conversion between the two ports if the Ethernet speed is different. This is ideal in scenarios where disparate networks need to be connected.
- Cut-Through Forwarding can be configured for environments where throughput speed is critical. This will increase the media converter's throughput and reduce latency by performing packet forwarding in the most efficient manner possible.
Copper to Fiber conversion is achieved by inserting SFP or SFP+ fiber transceivers that support multimode and single-mode fiber, including CWDM/DWDM wavelengths. Copper to copper is achieved by inserting SFP+ Direct Attach Cable (DAC), also known as twinax.
- General Information
- Manufacturer
- Perle Systems, Inc
- Manufacturer Website Address
- http://www.perle.com
- Brand Name
- Perle
- Product Series
- S-10G
- Product Type
- Transceiver/Media Converter
- Warranty
- Limited Warranty
- Lifetime
- Interfaces/Ports
- Total Number of Ports
- 1
- Network (RJ-45)
- Yes
- Number of Network (RJ-45) Ports
- 1
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Fiber Mode Supported
- Single-mode
- Multi-mode
- Maximum Distance Supported
- 100 m
- I/O Expansions
- Total Number of Expansion Slots
- 1
- Expansion Slot Type
- SFP+
- Number of SFP+ Slots
- 1
- Network & Communication
- Ethernet Technology
- 10 Gigabit Ethernet
- Network Technology
- 10GBase-T
- 10GBase-X
- 10GBase-CX1
- 10GBase-SR/LR/ER/ZR/LRM
- 1000Base-T
- 1000Base-LX/LH
- 1000Base-SX
- 1000Base-EX
- 1000Base-ZX
- 1000Base-BX
- Power Description
- Power Source
- AC Adapter
- Physical Characteristics
- Form Factor
- Rack-mountable
- Wall Mountable
- Standalone
- DIN Rail Mountable
- Height
- 42 mm
- Width
- 120 mm
- Depth
- 80 mm
- Weight (Approximate)
- 360 g
- Miscellaneous
- Package Contents
- S-10GRT-SFP Transceiver/Media Converter
- AC Adapter
- Application/Usage
- Industrial
- Network
- Certifications & Standards
- FCC Part 15 Class A EN55022 Class A
- CISPR 22 Class A
- CISPR 32:2012/EN 55032:2012 (Class A)
- CISPR 24:2010/EN 55024:2010
- EN61000-3-2
- EN55024UL/EN/IEC 62368-1 (previously 60950-1)
- CAN/CSA C22.2 No. 62368-1
- CE
- ECCN: 5A991
- Environmental Compliance
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
