- General Information
- Manufacturer
- Synology, Inc
- Manufacturer Website Address
- http://www.synology.com
- Brand Name
- Synology
- Product Line
- DiskStation
- Packaged Quantity
- 1
- Product Type
- SAN/NAS Storage System

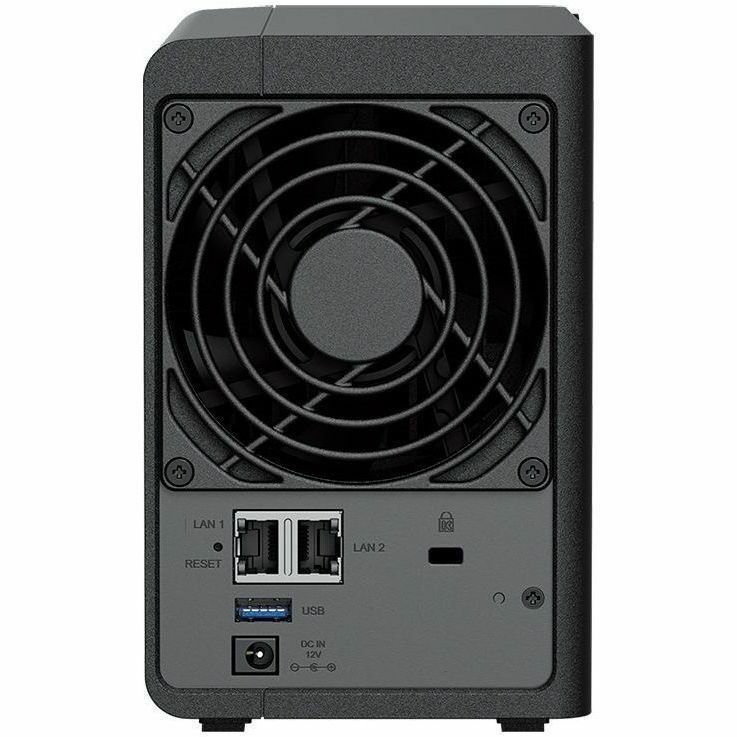

DiskStationDS224+ | Compact data storage for edge deployments Consolidate and safeguard
Protect all your data with integrated security features and centralized access.
Manage important data
Share, back up, and access files, photos, surveillance video, and more.
Minimize energy impact
15 watts under full operation keeps operating costs low.
Simply faster
DS224+ is faster at indexing files in Synology Drive and Synology Photos and more capable of running demanding web applications compared to previous-generation systems.
Store, share, and protect
Manage all your documents, images, and other files, back up applications and devices, and protect your property with professional video surveillance.
- Storage
- Number of Hard Drives Supported
- 2
- Number of Hard Drives Installed
- 0
- Number of Solid State Drive Supported
- 2
- Number of Solid State Drive Installed
- 0
- Processor & Chipset
- Number of Processors Installed
- 1
- Processor Manufacturer
- Intel
- Processor Type
- Celeron
- Processor Model
- J4125
- Processor Core
- Quad-core (4 Core)
- Processor Speed
- 2 GHz
- Memory
- Standard Memory
- 2 GB
- Memory Technology
- DDR4 SDRAM
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- I/O Expansions
- Number of Total Expansion Bays
- 2
- Number of 2.5"/3.5" Bays
- 2
- Controllers
- Controller Type
- Serial ATA
- RAID Supported
- Yes
- RAID Levels
- 0, 1, Basic, Hybrid RAID, JBOD
- Interfaces/Ports
- Drive Interface
- Serial ATA
- Total Number of USB Ports
- 2
- Number of USB 3.2 Gen 1 Ports
- 2
- Network (RJ-45)
- Yes
- Number of Network (RJ-45) Ports
- 2
- Software
- Operating System
- DiskStation Manager
- Management & Protocols
- Protocols
- iSCSI
- CIFS
- AFP
- FTP
- NFS
- WEBDAV
- Kerberos
- SMB 1.0
- SMB 2.0
- SMB 3.0
- NFSv3
- NFSv4
- NFSv4.1
- HTTP
- HTTPS
- SNMP
- LDAP
- CalDAV
- Power Description
- Maximum Power Supply Wattage
- 60 W
- Physical Characteristics
- Height
- 165 mm
- Width
- 108 mm
- Depth
- 232.2 mm
- Form Factor
- Desktop
- Weight (Approximate)
- 1.30 kg
- Miscellaneous
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
